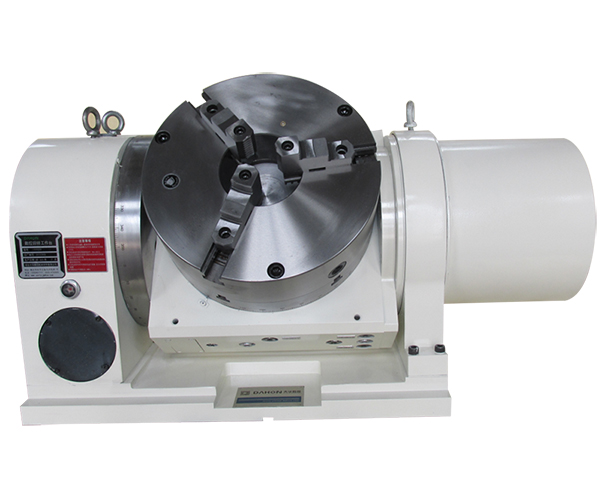

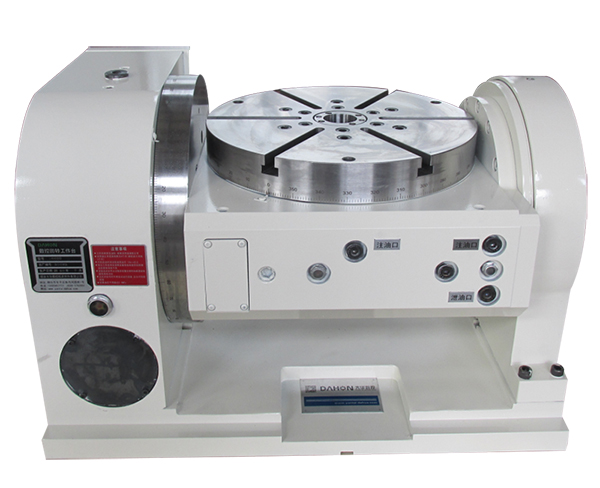

ZT14400数控可倾回转工作台

  • 产品名称: ZT14400数控可倾回转工作台
  • 产品分类: ZT14400数控可倾回转工作台
  • 联系方式: 133-7093-4786/133-7094-4786
  • 公司名称: 烟台大华数控机床附件有限公司
  • 公司地址:山东省烟台市牟平区鱼鸟河西路1号
  • 添加时间: 20/07/24
产品详情


数控可倾回转工作台主要用于数控机床加工中心机床上,可利用原机床的两个控制坐标控制转台的回转和倾斜,也可直接利用本转台配套的数控装置与机床联接完成所需的工作循环 。它可以完成任意角度的孔、槽、平面类机械加工,以及曲线、凸轮等的加工,并可达到较高的精度。另外也可用于非数控钻、铣、镗类机床上,独立完成等分和不等分的角度分度工作。
转台本体采用模块化设计技术,PAN 转台和TILT 转台为互相独立之模块,拆卸方便,既可控制,又可联动控制; 采用交流伺服电机驱动和谐波减速器传动,保证了平台不仅低速运行平稳,而且动态响应特性快;

rotary table is constructed complete with an NC controllable rotary axis as well as an NC controllabletilting axis,and mainly used with CNC milling machine and machine center,It is controlled either by two-coordinatecontrol system of the main machine or by selfequipped two-coordinate control system.In combination with mainmachine,holes,slots,cam,curving line and surface in any angle position can be carried out precisely.Besides,it can alsobe used in common drilling,milling and boring machines,performing independently equal and unequal divisions.
